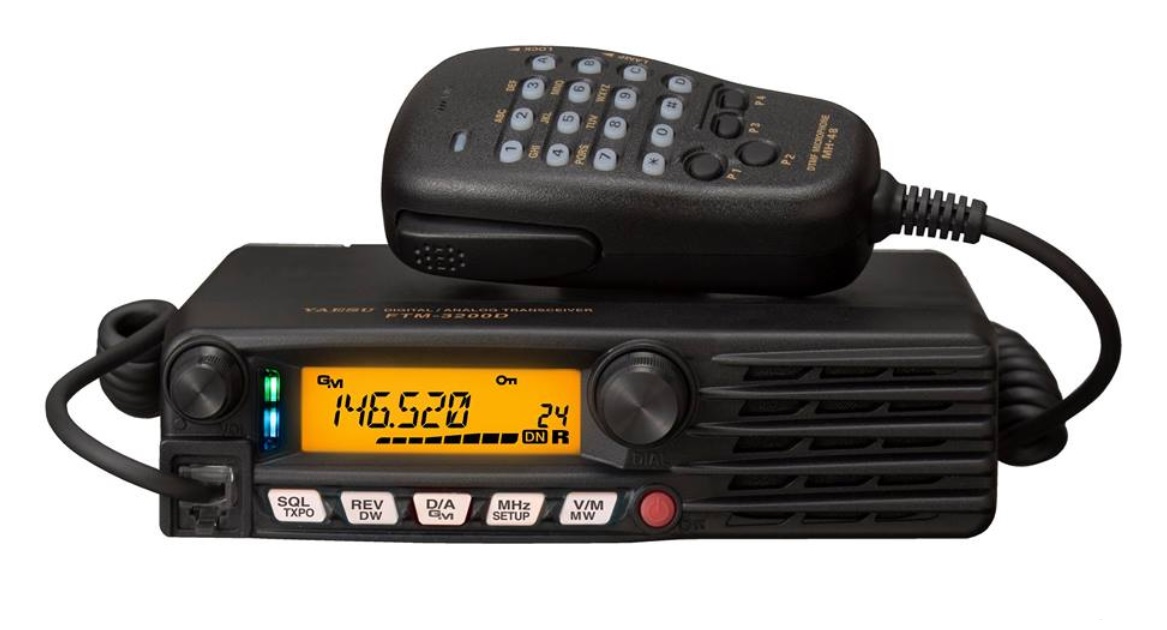

Компания Yaesu представила новый трансивер Yaesu FTM-3200DR – 2M 65W FM/C4FM Mobile.

65 W выходной мощности, фронтальный динамик на 3W, поддержка C4FM и USB порт - вот пожалуй ключевые особенности новинки. Более подробные характеристики под катом. Трансивер уже в продаже.

yaesu ftm 3200

Radio Features:
– 65W of Solid RF Power within a Compact Footprint
– Modulation Modes: C4FM Digital (V/D Mode, VFR Mode*, DFR Mode), FM Analog
– AMS (Automatic Mode Select) Function Automatically Recognizes the Signal as C4FM Digital or Conventional FM
– Loud and Crystal Clear Front Panel Speaker with 3W of Audio Output
– Digital GM (Group Monitor) Function
– Bright Multi-Colored LED Mode/Status Indicator Vibrantly Shows the Transceivers’ Status
– Illuminated Microphone with Direct Frequency Entry
– 220 Memory Channels with Alpha-Numeric Tags (Maximum 8 Characters)
– DSQ (Digital Squelch Code) Signaling Feature
– CTCSS and DCS Encode/Decode with Split Tone and DCS Encode-Only Capability
– Expanded Receiver Coverage: 136-174 MHz
– High Stability ±2.5 ppm TCXO Included
– Weather Broadcast Reception (USA version only)
– Severe Weather Alert Feature (USA version only)

*1 VFR Mode could not be manually selected as communication mode. When receiving the VFR Mode signal from other transceivers, the AMS automatically switches to
the VFR Mode as transmission mode. (“AUTO” must be selected from among the optional AMS function operations “TX Manual,” “TX FM FIX,” “TX DN FIX,” or “AUTO.”)

*2 Yaesu FTM-3200D does not support connectivity to HRI-200 as a WiRES-X Node Station nor accessibility to a Digital WiRES-X Node Station as a client.
(FTM-3200D allows operators to access to an Analog WiRES-X Node Station as a client.)

Supplied Accessories:
DTMF Microphone MH-48A6JA
USB Cable
Mounting Bracket
DC Power Cord w/Fuse
Operating Manual
Safety Guide
Warranty Card

Specifications:
Frequency Ranges: RX 136 – 174 MHz (specified performance, Amateur bands only) TX 144 – 148 MHz (Amateur bands only)
Circuit Type: Double-Conversion Superheterodyne
Modulation Type: F3E, F7W
RF Power Output: 65 W/30 W/5 W
Channels: 220
Case Size(W x H x D): 6.1″ x 1.7″ x 6.1″ (154 x 43 x 155 mm) w/o Knobs
Weight (Approx.): 2.86 lbs (1.3 kg)
Warranty: 3 Years

Цена на YAESU FTM-3200DR - 185$
